Stream

import 'dart:async';

void main() {
  // 初始化一个单订阅的Stream controller
  final StreamController ctrl = StreamController();

  // 初始化一个监听
  final StreamSubscription subscription = ctrl.stream.listen((data) => print('$data'));

  // 往Stream中添加数据
  ctrl.sink.add('my name');
  ctrl.sink.add(1234);
  ctrl.sink.add({'a': 'element A', 'b': 'element B'});
  ctrl.sink.add(123.45);

  // StreamController用完后需要释放
  ctrl.close();
}

StreamBuilder<T>(
    key: ...可选...
    stream: ...需要监听的stream...
    initialData: ...初始数据，否则为空...
    builder: (BuildContext context, AsyncSnapshot<T> snapshot){
        if (snapshot.hasData){
            return ...基于snapshot.hasData返回的控件
        }
        return ...没有数据的时候返回的控件
    },
)

import 'dart:async';
import 'package:flutter/material.dart';

class CounterPage extends StatefulWidget {
  @override
  _CounterPageState createState() => _CounterPageState();
}

class _CounterPageState extends State<CounterPage> {
  int _counter = 0;
  final StreamController<int> _streamController = StreamController<int>();

  @override
  void dispose(){
    _streamController.close();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: Text('Stream version of the Counter App')),
      body: Center(
        child: StreamBuilder<int>(  // 监听Stream，每次值改变的时候，更新Text中的内容
          stream: _streamController.stream,
          initialData: _counter,
          builder: (BuildContext context, AsyncSnapshot<int> snapshot){
            return Text('You hit me: ${snapshot.data} times');
          }
        ),
      ),
      floatingActionButton: FloatingActionButton(
        child: const Icon(Icons.add),
        onPressed: (){
          // 每次点击按钮，更加_counter的值，同时通过Sink将它发送给Stream；
          // 每注入一个值，都会引起StreamBuilder的监听，StreamBuilder重建并刷新counter
          _streamController.sink.add(++_counter);
        },
      ),
    );
  }
}

classDiagram

class EventSink~T~ {
 add(T event)void
 addError(Object error, [StackTrace? stackTrace])void
 close()void
}

class StreamConsumer~S~ {
addStream(Stream<S> stream)Future
close()Future
}

class StreamSink~T~ {
 close()Future
 Future done;
}

class StreamController~T~ {
 Stream<T> stream
 StreamSink<T> sink
}

class Stream~T~ {
   listen(void onData(T event)?, Function? onError, void onDone()?, bool? cancelOnError)StreamSubscription~T~
}

class _StreamControllerBase~T~ {

}

class _BroadcastStreamController~T~ {
 Function onListen
 Function onCancel
 Stream<T> stream => _BroadcastStream<T>(this);

}

class _AsyncBroadcastStreamController~T~ {
 _sendData(T data)void
 _sendError(Object error, StackTrace stackTrace)void
 _sendDone()void
}

class _StreamImpl~T~ {
 listen(void onData(T event)?, ...)StreamSubscription~T~
}

class _ControllerStream~T~ {
  _StreamControllerLifecycle<T> _controller;
 _createSubscription(void onData(T event)?, ...)StreamSubscription~T~
}
class _BroadcastStream~T~ {
 isBroadcast => true;
}

StreamSink<|--StreamController
EventSink<|--StreamSink
StreamConsumer<|--StreamSink
StreamController<|--_StreamControllerBase

_StreamControllerBase<|--_BroadcastStreamController
_BroadcastStreamController<|--_AsyncBroadcastStreamController
Stream<|--_StreamImpl
_StreamImpl<|--_ControllerStream
_ControllerStream<|--_BroadcastStream

class _ForwardingStream~S, T~ {
Stream<S> _source
listen(void onData(T event)?, ...)StreamSubscription~T~
_handleData(S data)void
}

class _MapStream~S, T~ {
_Transformation<S, T> _transform
_handleData(S inputEvent, _EventSink<T> sink)void
}
Stream<|--_ForwardingStream
_ForwardingStream<|--_MapStream


class StreamView~T~ {
Stream<T> _stream;
}

Stream<|--StreamView

class Subject~T~ {
StreamController<T> _controller
}
StreamController<|--Subject
StreamView<|--Subject

classDiagram
class StreamSubscription~T~ {
   onData(void handleData(T data)?)void
   onError(Function? handleError)void
   onDone(void handleDone()?)void
   resume()void
   pause([Future<void>? resumeSignal])void
}
class _EventDispatch~T~ {
  _sendData(T data)void
  _sendError(Object error, StackTrace stackTrace)void
  _sendDone()void
}
class _BufferingStreamSubscription~T~ {
  _DataHandler<T> _onData;
   Function _onError;
  _DoneHandler _onDone;
}

class _EventSink~T~ {
  _add(T data)void
  _addError(Object error, StackTrace stackTrace)void
  _close()void
}

class _ForwardingStreamSubscription~S, T~ {
_ForwardingStream<S, T> _stream;
StreamSubscription<S>? _subscription;
_add(T data)void
}

StreamSubscription<|--_BufferingStreamSubscription
_EventSink<|--_BufferingStreamSubscription
_EventDispatch<|--_BufferingStreamSubscription
_BufferingStreamSubscription<|--_ForwardingStreamSubscription

graph LR
Stream.listen-->|_subscribe, call|onListen_Callback

  /// The [onListen] callback is called when the first listener is subscribed,
  /// and the [onCancel] is called when there are no longer any active listeners.
  /// If a listener is added again later, after the [onCancel] was called,
  /// the [onListen] will be called again.
factory StreamController.broadcast(
    {void onListen()?, void onCancel()?, bool sync = false}) {
  return sync
      ? _SyncBroadcastStreamController<T>(onListen, onCancel)
      : _AsyncBroadcastStreamController<T>(onListen, onCancel);
}

Stream<S> map<S>(S convert(T event)) {
  return new _MapStream<T, S>(this, convert);
}

graph LR
subgraph 事件订阅

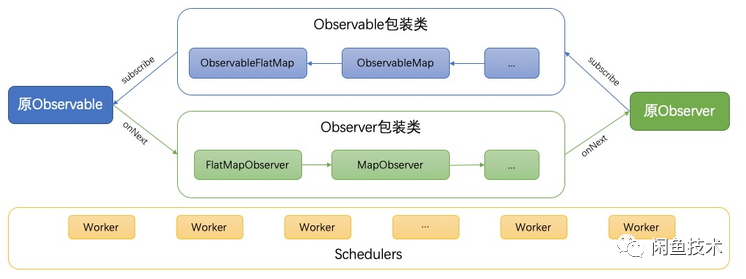

subscribe("类似RxJava设计,subscribe/listen时持有上游Stream对象进行订阅,并包裹observer/subcription")
end
subscribe-->consume
subgraph 事件消费
consume("在消费事件时能够提前拦截并按照操作符的含义进行操作,之后转发给下游OnData")
end

/// A stream pipe that converts data events before passing them on.
class _MapStream<S, T> extends _ForwardingStream<S, T> {
  final _Transformation<S, T> _transform;

  _MapStream(Stream<S> source, T transform(S event))
      : this._transform = transform,
        super(source);

  void _handleData(S inputEvent, _EventSink<T> sink) {
    T outputEvent;
    try {
      outputEvent = _transform(inputEvent);
    } catch (e, s) {
      _addErrorWithReplacement(sink, e, s);
      return;
    }
    sink._add(outputEvent);
  }
}

abstract class _ForwardingStream<S, T> extends Stream<T> {
  final Stream<S> _source;

  _ForwardingStream(this._source);//_source是上游Stream对象，用来进行订阅

  bool get isBroadcast => _source.isBroadcast;

  StreamSubscription<T> listen(void onData(T value)?,
      {Function? onError, void onDone()?, bool? cancelOnError}) {//开始事件订阅过程
    return _createSubscription(onData, onError, onDone, cancelOnError ?? false);
  }

  StreamSubscription<T> _createSubscription(void onData(T data)?,
      Function? onError, void onDone()?, bool cancelOnError) {
    return new _ForwardingStreamSubscription<S, T>(//main
        this, onData, onError, onDone, cancelOnError);
  }

    // Override the following methods in subclasses to change the behavior.
  void _handleData(S data, _EventSink<T> sink);

  void _handleError(Object error, StackTrace stackTrace, _EventSink<T> sink) {
    sink._addError(error, stackTrace);
  }

  void _handleDone(_EventSink<T> sink) {
    sink._close();
  }
}

/// Abstract superclass for subscriptions that forward to other subscriptions.
class _ForwardingStreamSubscription<S, T>
    extends _BufferingStreamSubscription<T> {
  final _ForwardingStream<S, T> _stream;

  StreamSubscription<S>? _subscription;

  _ForwardingStreamSubscription(this._stream, void onData(T data)?,
      Function? onError, void onDone()?, bool cancelOnError)
      : super(onData, onError, onDone, cancelOnError) {//传入父类的是onData，用于transform后进行_EventSink的_add听通知
    _subscription = _stream._source//用上游Stream对象进行订阅
        .listen(_handleData, onError: _handleError, onDone: _handleDone);//将_handleData方法作为onData传入，方便回调时拦截
  }

    void _add(T data) {//开始消费事件过程
    if (_isClosed) return;
    super._add(data);
  }

    // Methods used as listener on source subscription.
  void _handleData(S data) {
    _stream._handleData(data, this);//转发到_MapStream._handleData,类似RxJava的设计，在subscribe/listen时配置observer/subcription,进而在消费事件时能够提前拦截并按照操作符的含义进行操作
  }

  void _handleError(error, StackTrace stackTrace) {
    _stream._handleError(error, stackTrace, this);
  }

  void _handleDone() {
    _stream._handleDone(this);
  }
}

class _BufferingStreamSubscription<T>
    implements StreamSubscription<T>, _EventSink<T>, _EventDispatch<T> {

    _BufferingStreamSubscription(void onData(T data)?, Function? onError,
      void onDone()?, bool cancelOnError)
      : this.zoned(Zone.current, onData, onError, onDone, cancelOnError);

  _BufferingStreamSubscription.zoned(this._zone, void onData(T data)?,
      Function? onError, void onDone()?, bool cancelOnError)
      : _state = (cancelOnError ? _STATE_CANCEL_ON_ERROR : 0),
        _onData = _registerDataHandler<T>(_zone, onData),
        _onError = _registerErrorHandler(_zone, onError),
        _onDone = _registerDoneHandler(_zone, onDone);


  void _add(T data) {
    if (_canFire) {
      _sendData(data);
    } else {
      _addPending(new _DelayedData<T>(data));
    }
  }

  void _sendData(T data) {
    _zone.runUnaryGuarded(_onData, data);//执行_onData配置的方法，也就是构造方法传入的onData
  }

static void Function(T) _registerDataHandler<T>(
    Zone zone, void Function(T)? handleData) {
  return zone.registerUnaryCallback<void, T>(handleData ?? _nullDataHandler);
}
